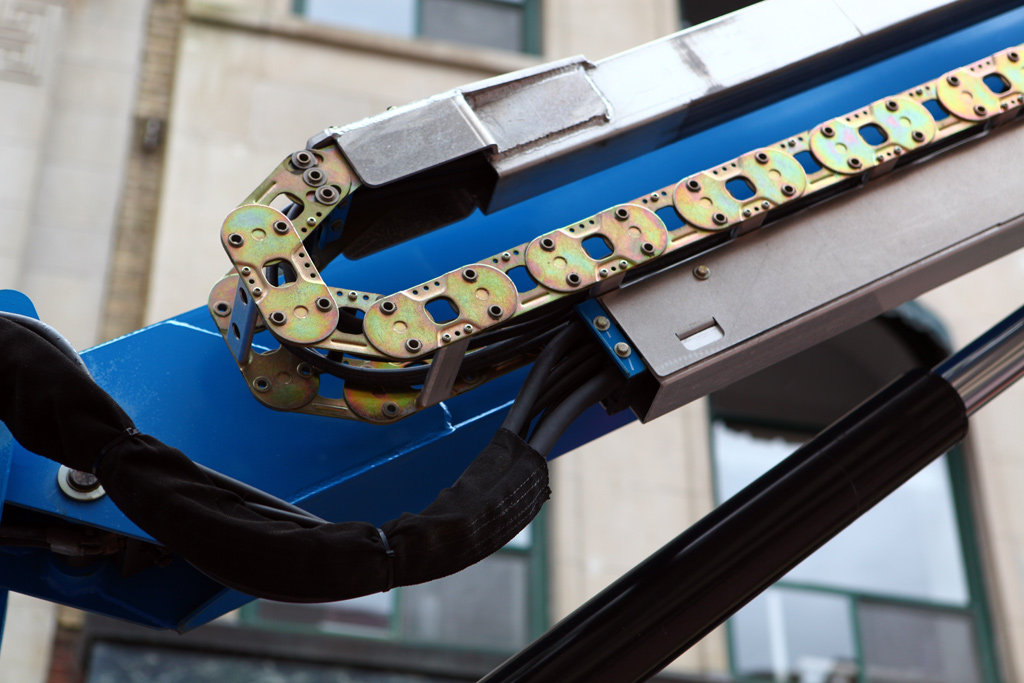

Force-carrying chain

2011-05-23

in Photo of the day

{ 2 comments… read them below or add one }

Matt May 23, 2011 at 5:12 pm

Just thought I’d mention that the chains in those man-lifts serve as guides/protection for the hydraulic and electrical cables that reside inside them. They carry comparatively little force, but are designed to accommodate the changing length of the boom as it telescopes.

Milan May 24, 2011 at 9:25 pm

So is it the blue-painted beam that carries most of the force?
